Steam jet Electric Machine
Welcome to Manmachine Works

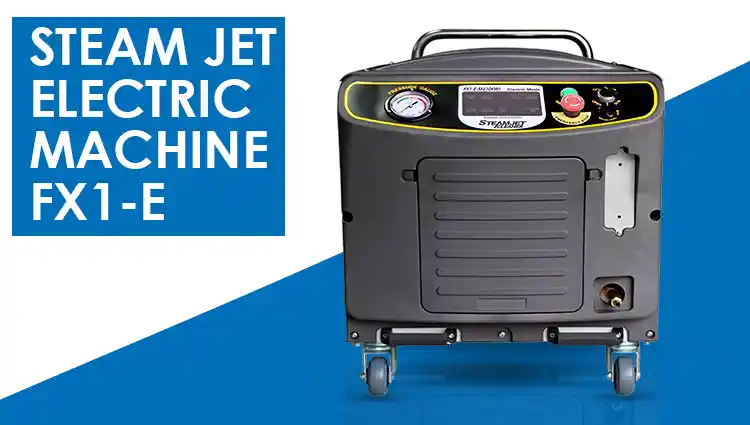

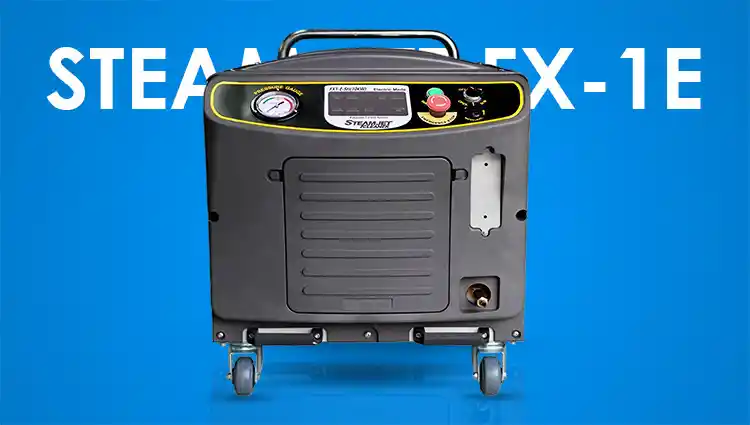

Steam jet Electric Machine

Experience the New Technology of STEAMJET! Completely Different & Innovative System.

Enquire Productx

Specification of FX1-E (electric mode)

Dimension 695x550x600mm (H*W*L)
Net Weight 36kg
Boiler power 23 Liters (Direct water connection possible)
Hose length 10 meters
Power consumption For 380V model 10kw per hour (when start up) (under 8Kw on operating)
Electric power 380V 3 phase or 220V 3 phase
preheating time 30~40 seconds
Steam pressure Average 9 Bar : using wet steam 6~7 bar : using dry steam
Steam temperature 85~95`C (when it sprayed in air)
Water consumption 400~900cc/min (Adjustable for dry and wet)


Feature of FX1-E

It is the safest and most economical steam machine in the world.

FX1-E is very safety system because it is instant heating system (Non boiler type), and FX1-E doesn't have a steam storage (steam tank). (It is totally different system with normal boiler type machine). (Boiler type machine has a steam storage. the steam storage has huge risks of being explosion if not cared properly.)

FX1-E system enable to get ready in less than 30~40 seconds. (On the contrary, the boiler systems needs minimum 10 minutes for preheating time.)

FX1-E can save 5 times of the electric power more than other boiler type machine. (Another normal boiler system has to keep boiling water to generate steam even when it does not using the machine).

Let select FX1-E, it can save your lots of money for operation expenses.
